Product omschrijving

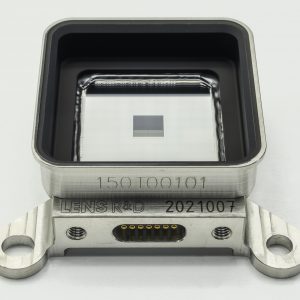

The BiSon64-ET-B is the high reliable BiSon64-ET Sunsensor with a baffle mounted to the housing in order to reduce Earth albedo and stray light induced errors.
Specifications
| TRL | 9 |
| Field of view (FOV) | ±58° ±2° on axis, ±65° ±2° in diagonal |
| Accuracy | <0.5 degrees 3σ (using calibration tables), <2 degrees (using specific correction parameters), <3.5 degrees (without calibration) |
| Mass | <33 |
| Operating temperature | -120°C to +120°C |
| Qualification temperature | -65°C..+105°C, life testing 2000 TVAC cycles up to -45°C..+105°C |
| First frequency | >200Hz |
| Vibration loads | 34.26g at 2g²/Hz (random), 40g (sine) |
| Shock loads | 3000g |
| Radiation tolerance | 8E14 1MeV electrons on bare diodes |
