Product omschrijving

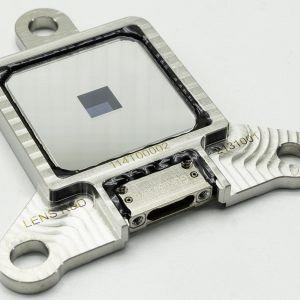

The MAUS is a radiation hardened (>10Mrad) fine sun sensor especially developed for the CubeSat market. Taking advantage of the BiSon64-ET developments while keeping a focus on the special requirements for the smallest satellites, the MAUS is combining high reliability Sun sensing with a very low profile.
Specifications
| Field of view (FOV) | ±57.5° ±2° on axis, ±65.8° ±2° in diagonal |
| Accuracy | <0.5 degrees 3σ (using calibration tables), <2 degrees (using specific correction parameters), <3.5 degrees (without calibration) |
| Mass | <15g |
| Operating temperature | -40°C..+80°C, 2000 TVAC cycles qualification up to -45°C..+105°C |
| First frequency | >200Hz |
| Vibration loads | 34.26g at 2g²/Hz (random), 40g (sine)34.26g at 2g²/Hz (random), 40g (sine) |
| Shock loads | 3000g |
| Radiation tolerance | 8E14 1MeV electrons on bare diodes |
